Continental HSR2
About the Product

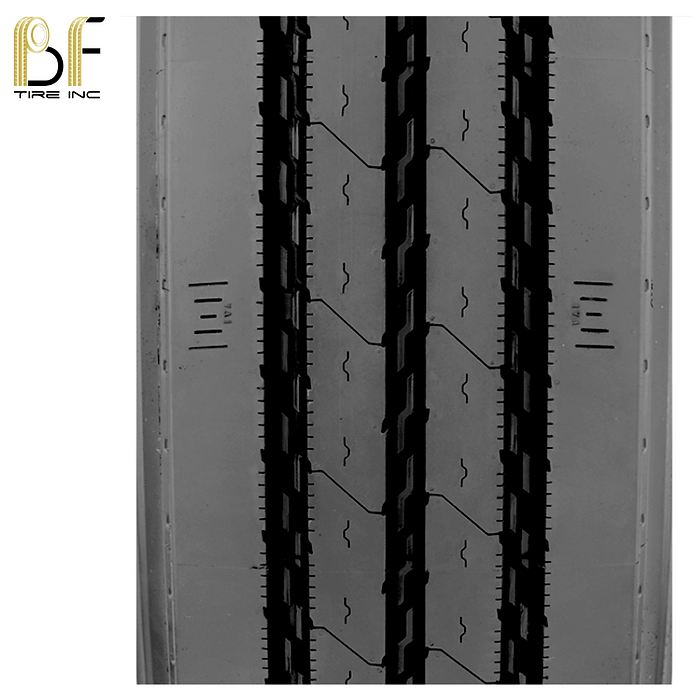

The HSR2 is a heavy steer/all-position tire for regional hauling applications with patented groove technology that minimizes stone retention and extends casing life. The innovative tread geometry provides an even wear pattern under all load conditions and balanced pressure distribution in the ground contact patch. The cut and chip resistant tread compound and protective curb rib make the HSR2 the perfect tire in high scrub and rough road conditions.
Product Highlights
- 23/32" deep tread with improved cut and chip resistance for optimal performance
- Protective curb rib for high scrub applications
- Patented innovative groove technology leads to minimum stone retention, extending casing life
- Patented groove geometry for better resistance to cracking and tearing
Specifications
| Tire Size | Load Range |
Article Number | Tread Depth (32nds) |
Max Speed (MPH) |
Static Loaded Radius (IN) |
Static Loaded Radius (MM) |
Overall Inflated Diameter (IN) |
Overall Inflated Diameter (MM) |
Overall Inflated Width (IN) |
Overall Inflated Width (MM) |
Loaded Section Width (IN) |
Loaded Section Width (MM) |
Approved Rim(s) |
Minimum Dual Spacing (IN) |
Minimum Dual Spacing (MM) |
Revs Per Unit (MI) |
Revs Per Unit (KM) |
Tire Weight (LB) |
Tire Weight (KG) |
Max Load @ Inflation Single (LBS, PSI) |
Max Load @ Inflation Dual (LBS, PSI) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10R22.5 | G | 5686570000 | 20 | 75 | 18.8 | 478 | 40 | 1016 | 10 | 254 | 10.8 | 274 | 7.50 / 6.75, 8.25 | 11.4 | 290 | 518 | 322 | 100 | 45 | 5675, 115 (2575, 790) |
5355, 115 (2430, 790) |
| 11R22.5 | G | 05686300000 / 05651060000 | 23 | 75 | 19.4 | 493 | 41.6 | 1057 | 11.1 | 282 | 12 | 305 | 8.25 / 7.50 | 12.5 | 318 | 498 | 309 | 119 | 54 | 6175, 105 (2800, 720) |
5840, 105 (2650, 720) |
| 11R22.5 | H | 05129220000 / 05655720000 | 23 | 75 | 19.4 | 493 | 41.6 | 1057 | 11.1 | 282 | 12 | 305 | 8.25 / 7.50 | 12.5 | 318 | 498 | 309 | 119 | 54 | 6610, 120 (3000, 830) |
6005, 120 (2725, 830) |
| 12R22.5 | H | 05120880000 / 05651750000 | 23 | 75 | 20.2 | 512 | 42.8 | 1088 | 11.7 | 297 | 12.9 | 327 | 9.00 / 8.25 | 13.5 | 343 | 483 | 300 | 131 | 59 | 7390, 120 (3350, 830) |
6780, 120 (3075, 830) |
| 275/80R22.5 | H | 05686350000 / 05651080000 | 23 | 75 | 18.7 | 478 | 40 | 1016 | 11.1 | 282 | 12.6 | 320 | 8.25 | 12.5 | 318 | 518 | 322 | 122 | 55 | 7160, 120 (3250, 830) |
6610, 120 (3000, 830) |
| 11R24.5 | H | 05686330000 / 05651110000 | 23 | 75 | 20.4 | 518 | 43.5 | 1105 | 11.1 | 282 | 12 | 305 | 8.25 | 12.5 | 318 | 483 | 300 | 130 | 59 | 7160, 120 (3250, 830) |
6610, 120 (3000, 830) |
| 285/75R24.5 | H | 05687020000 / 05652200000 | 23 | 75 | 19.4 | 493 | 41.6 | 1057 | 10.7 | 272 | 10.7 | 272 | 8.25 | 12.5 | 318 | 501 | 311 | 120 | 55 | 6780, 120 (3075, 830) |
6175, 120 (2800, 830) |
